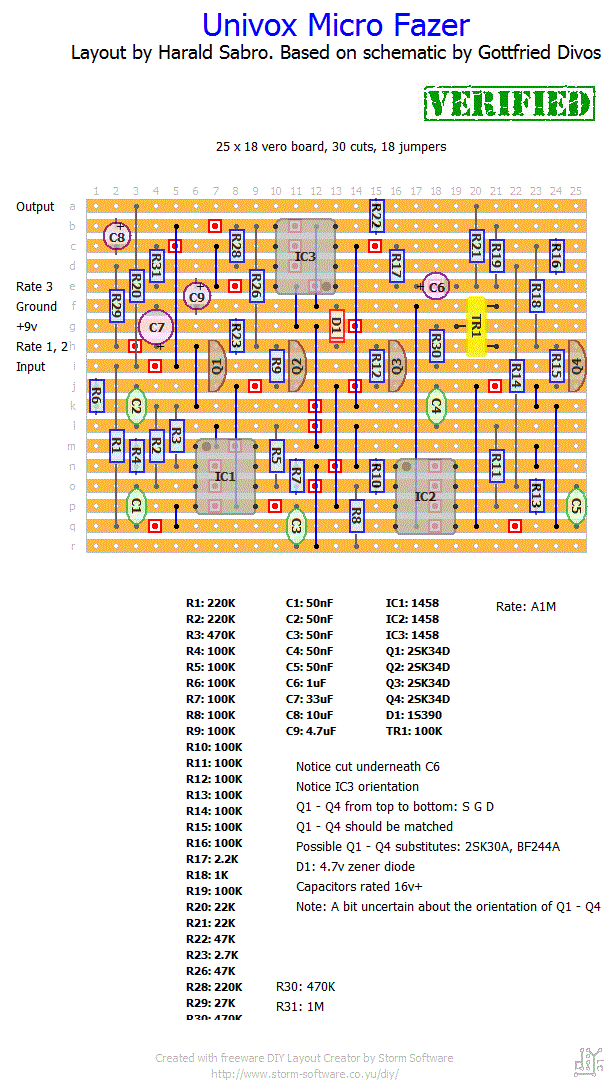

I’ve been busy doing amp stuff lately and you might have noticed I haven’t done many layouts lately. But here’s a new one 🙂 This is the Univox Micro Fazer. Not sure what it’s going to sound like, but that’s part of the fun.
Update (12.08.2013): Already verified as working (using 2n3819 and reverse pinout), thanks to Irmin.
Works nicely with the BF244A just reverse the orientation. On the brighter channel of my amp though I hear a ticking. I shortened the wires that I could but does anyone have other suggestions?
Thanks
Thanks Glenn. The amp stuff is working out, but I’m just barely getting started 😉
Phase 90 is great so I can see why you’re in no hurry to build another one.
Glad to see you back Harald:
hope the amp stuff worked out ok. I saw this layout and it looks interesting, but I just built your phase 90 layout and it it sounds great!…keep up the good work
